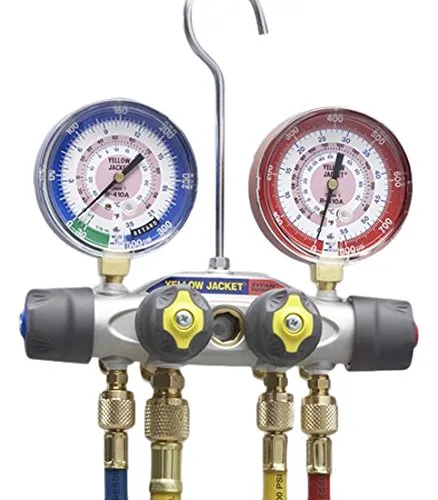

The Yellow Jacket 49967 TITAN 4 Valve Test and Charging Manifold for R-22, R-404A, and R-410A is the first forged aluminum manifold in the industry. The unique aluminum alloy construction of the manifold body makes it lightweight for handling ease with the durability and reliability required for repeated, rugged use.
Features:
- Fourth hose to enable connection to hi-/lo-sides, refrigerant tank, and recovery unit or vacuum pump for diagnostics, evacuation, and charging without switching hoses
- 3/8" vacuum port for use with larger hose to cut evacuation time by up to 33 percent (all other fittings are 1/4")
- Front access for easy field recalibration
- Proven, double “O” ring piston for reliability and long service life
- Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extends the life of the seats
- Contoured easy-grip handles for positive control
- Sight glass to easily view refrigerant movement and condition during charging and recovery
- Heavy-duty hook won’t pull out
Other Details:
- A Full Range 1/8 To 3/4 Inch O.D. Flaring Tool Available For Copper, Brass And Aluminum Tubing
- Large, easy-to-read 3-1/8” (80 mm) steel case red and blue
- Gauge Reads in Fahrenheit
- Made in the United States.
FAQs
-
Can this read r22 and r410a? - Yes, this can read both of them.
